Composite CNG Dispensing Unit(CCDU)
Compact integrated CNG station on a Skid combining compression, storage, and dispensing within a single modular system.
Composite CNG Dispensing Unit(CCDU)

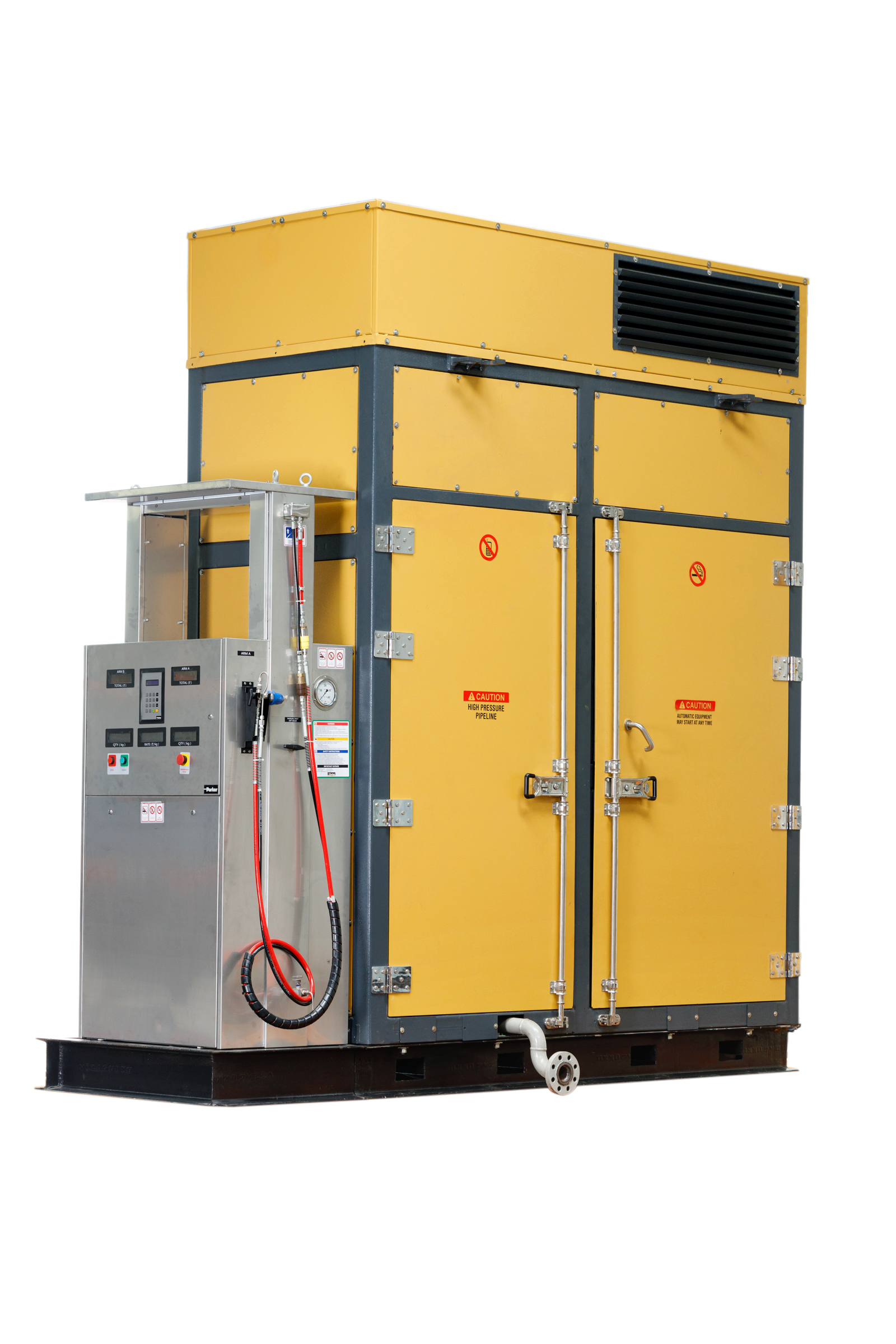

Composite CNG Dispensing Unit (CCDU) is a compact and modular CNG station designed with
compression, storage, and dispensing on a single skid.
The system comprises a CNG compressor, CNG storage cascade, and CNG dispensing unit
integrally attached within a secure enclosure. It is designed for locations requiring
efficient space utilization, faster deployment, and integrated station functionality.
Approved by PESO, CCDU is engineered for forecourt installation and offers a high level of
safety through its twin chamber design and reinforced enclosure structure.
Why CCDU
CCDU is designed for operators seeking a compact, safe, and integrated CNG station solution. By combining compression, storage, and dispensing within a single modular package, it enables efficient deployment while maintaining operational performance and safety standards.
Integrated Single Skid Solution -
CCDU combines key station components into one compact package.
This all-in-one design simplifies station setup while reducing dependency on multiple separate installations.
- CNG Compressor
- Storage Cascade
- Integrated Control and Utility Systems
- Safety Enclosure
- CNG Dispensing Unit
Key Features
- Compression, storage, and dispenser on single skid
- Compact and modular CNG station design
- PESO approved for forecourt installation
- Compression capacity of 350 SCMH, expandable up to 500 SCMH
- Dual arm detachable CNG dispenser
- Storage capacity options of 450 / 600 / 750 WL
- Small footprint of approx. 3.5 - 4 m²
- Dual mode operation as Daughter Booster and Online Compressor
- Electric drive options of 37 / 45 / 55 kW
- Suitable for retail outlets and compact installation
- Faster deployment compared to conventional station layouts
Advanced Safety Design
CCDU is designed with enhanced safety features for operational reliability in forecourt environments.
- Twin chamber design segregating compressor, storage, and dispenser sections
- Thick steel partition walls between operating zones
- Fire resistant insulation media inside enclosure
- Fire and pressure surge resistant doors and lock arrangement
- Impact and projectile resistant structural frame
- Gas tight side walls with louvers above human height
- Vertical orientation of gas cylinders for enhanced safety
- International safety compliance
Operational Benefits
- Reduced installation footprint
- Lower site preparation requirements
- Integrated station functionality in one package
- Suitable for urban and retail locations
- Simplified maintenance and equipment access
- Scalable capacity based on demand growth
- Efficient use of available space
Applications
- Retail Fuel Outlets
- Urban CNG Stations
- Compact Forecourt Installations
- Daughter Stations
- Online CNG Stations
- Fast Deployment CNG Projects
